UBICACION DE LAS PIEZAS

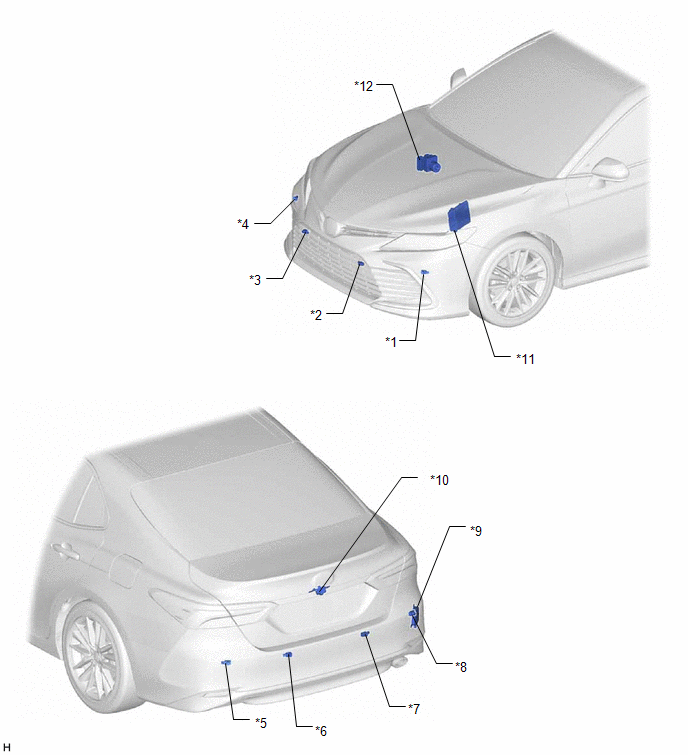

ILUSTRACION
*1 | SENSOR ULTRASONICO IZQUIERDO DE LA ESQUINA DELANTERA |
*2 | SENSOR ULTRASONICO CENTRAL DELANTERO IZQUIERDO |
*3 | SENSOR ULTRASONICO CENTRAL DELANTERO DERECHO |
*4 | SENSOR ULTRASONICO DERECHO DE LA ESQUINA DELANTERA |
*5 | SENSOR ULTRASONICO DE LA ESQUINA TRASERA IZQUIERDA |
*6 | SENSOR ULTRASONICO CENTRAL TRASERO IZQUIERDO |
*7 | SENSOR ULTRASONICO CENTRAL TRASERO DERECHO |
*8 | SENSOR ULTRASONICO DERECHO DE LA ESQUINA TRASERA |
*9 | SENSOR DERECHO DE SUPERVISION DE PUNTO CIEGO (B) |
*10 | CONJUNTO DE LA CAMARA DE TELEVISION TRASERA |
*11 | ECM |
*12 | CONJUNTO DEL ACTUADOR DEL FRENO - ECU DE CONTROL DE DERRAPE |

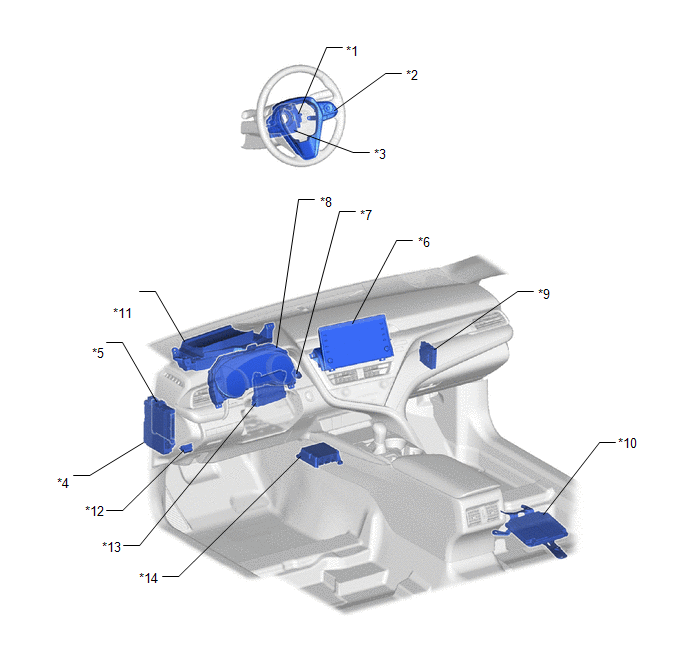

ILUSTRACION
*1 | SUBCONJUNTO DEL CABLE ESPIRAL | *2 |
CONJUNTO DEL INTERRUPTOR DE LA ALMOHADILLA DEL VOLANTE |
*3 | SENSOR DE DIRECCION |
*4 | CONJUNTO DEL BLOQUE DE EMPALMES DEL PANEL DE INSTRUMENTOS - FUSIBLE ECU-IG1 NO. 4 |
*5 | ECU PRINCIPAL DE LA CARROCERIA (ECU DE LA RED MULTIPLEX DE LA CARROCERIA) |
*6 | CONJUNTO DEL RECEPTOR DE RADIO Y PANTALLA |
*7 | AVISADOR ACUSTICO DE ADVERTENCIA DE ESPACIO LIBRE NO. 1 |
*8 | CONJUNTO DEL MEDIDOR COMBINADO - PANTALLA DE INFORMACION MULTIPLE - INDICADOR DEL SONAR DE ESPACIO LIBRE APAGADO - INDICADOR RCTA APAGADO |
*9 |
CONJUNTO DE LA ECU DE ADVERTENCIA DE ESPACIO LIBRE |
*10 | CONTROLADOR DE LA CAMARA DE TELEVISION |
*11 | SUBCONJUNTO DEL ESPEJO DEL MEDIDOR | *12 |
DLC3 |
*13 |
CONJUNTO DEL AMPLIFICADOR DEL AIRE ACONDICIONADO |
*14 | CONJUNTO DEL SENSOR DEL AIRBAG |
