Toyota Camry Manual de reparaciones XV70 (2017-2023): UbicaciÓn De Las Piezas

UBICACIÓN DE LAS PIEZAS

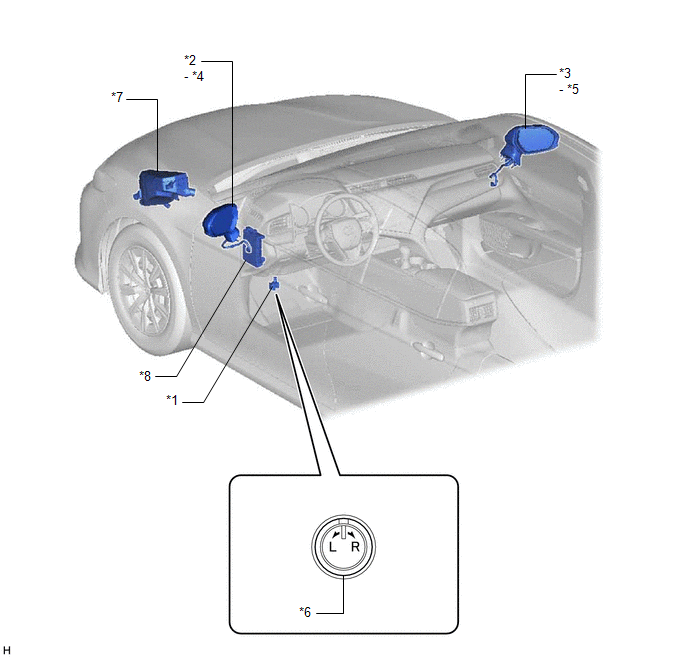

ILUSTRACIÓN

*1

CONJUNTO DEL INTERRUPTOR DEL ESPEJO RETROVISOR EXTERIOR

*2

CONJUNTO DEL ESPEJO RETROVISOR EXTERIOR IZQUIERDO TRASERO

*3

CONJUNTO DEL ESPEJO RETROVISOR EXTERIOR DERECHO

*4

ESPEJO EXTERIOR IZQUIERDO

*5

ESPEJO EXTERIOR DERECHO

*6

INTERRUPTOR DE SELECCIÓN DE ESPEJO Y AJUSTE DE LA SUPERFICIE

*7

CONJUNTO DEL BLOQUE DE EMPALMES Y BLOQUE DE RELÉS DEL COMPARTIMENTO DEL MOTOR

- FUSIBLE DEF

- RELÉ DEF

- FUSIBLE MIR HTR

*8

CONJUNTO DEL BLOQUE DE EMPALMES DEL PANEL DE INSTRUMENTOS

- FUSIBLE ECU-ACC

- FUSIBLE ECU-IG1 NO. 3

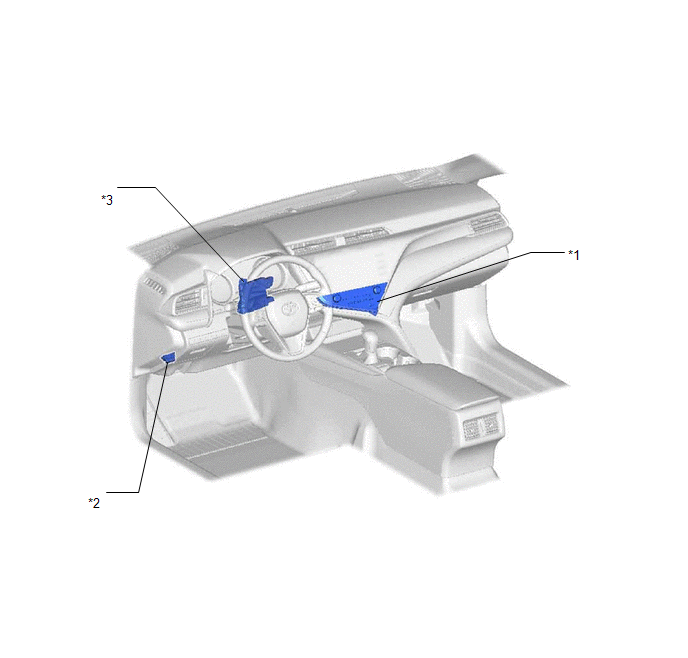

ILUSTRACIÓN

*1

INTERRUPTOR DEL DESEMPAÑADOR DE LA LUNETA TRASERA (CONJUNTO DEL SISTEMA DE CONTROL DEL AIRE ACONDICIONADO)

*2

DLC3

*3

CONJUNTO DEL AMPLIFICADOR DEL AIRE ACONDICIONADO

-

-

PrecauciÓn
PRECAUCIÓN MEDIDAS DE PRECAUCIÓN PARA DESCONECTAR EL CABLE DEL TERMINAL NEGATIVO DE LA BATERÍA AVISO: Cuando desconecte el cable del terminal negativo (-) de la batería, inicialice los siguiente ...

Diagrama Del Sistema
DIAGRAMA DEL SISTEMA FUNCIÓN DE MANDO A DISTANCIA ELÉCTRICO DE LOS ESPEJOS FUNCIÓN DE CALEFACTOR DEL ESPEJO Tabla de comunicaciones Emisor Receptor Señal Método de comunic ...
