COMPONENTES

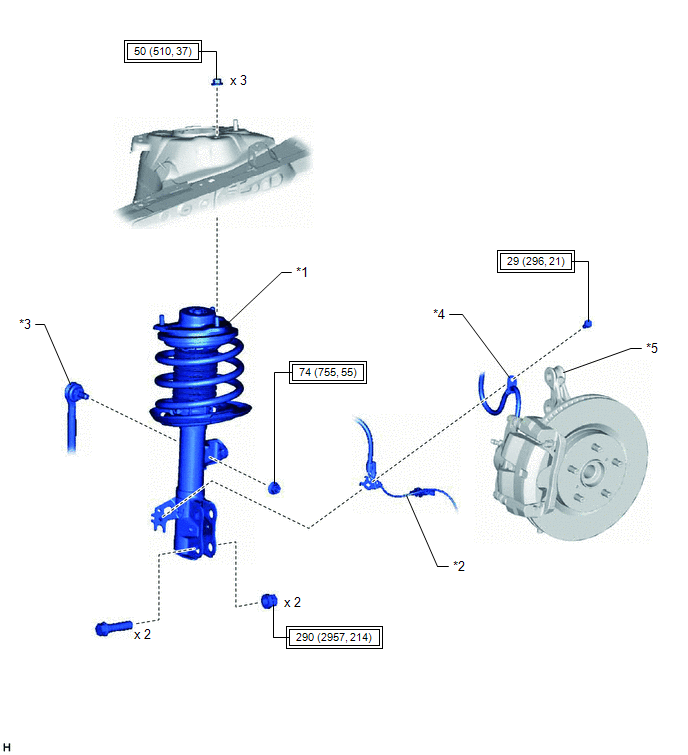

ILUSTRACIÓN
|
*1 | AMORTIGUADOR DELANTERO CON MUELLE ESPIRAL |
*2 | SENSOR DE VELOCIDAD DELANTERO |
|
*3 | CONJUNTO DEL ESTABILIZADOR DELANTERO |
*4 | MANGUERA FLEXIBLE DELANTERA |
|
*5 | PIVOTE DE LA DIRECCIÓN |
- | - |
|
Par de apriete para "Zonas principales que implican el rendimiento básico del vehículo, como moverse/girar/detenerse": N*m (kgf*cm, lbf*pi.) |
- | - |

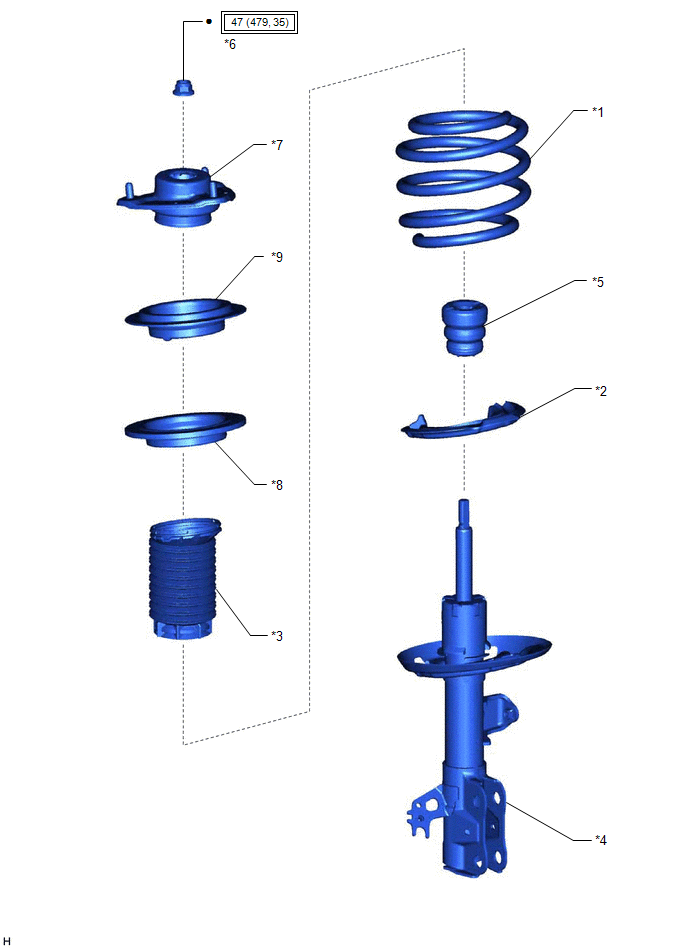

ILUSTRACIÓN
|
*1 | MUELLE ESPIRAL DELANTERO |
*2 | AISLANTE INFERIOR DEL MUELLE ESPIRAL DELANTERO |
|
*3 | CUBIERTA ANTIPOLVO DEL AMORTIGUADOR DELANTERO No. 1 |
*4 | CONJUNTO DEL AMORTIGUADOR DELANTERO |
|
*5 | TOPE DE RESORTE DELANTERO |
*6 | TUERCA DEL SOPORTE DELANTERO AL AMORTIGUADOR DELANTERO |
|
*7 | SUBCONJUNTO DEL SOPORTE DE LA SUSPENSIÓN DELANTERA |
*8 | AISLANTE SUPERIOR DEL MUELLE ESPIRAL DELANTERO |
|
*9 | COJINETE DE MONTAJE DEL PUNTAL |
- | - |
|
Par de apriete para "Zonas principales que implican el rendimiento básico del vehículo, como moverse/girar/detenerse": N*m (kgf*cm, lbf*pi.) |
● | Pieza no reutilizable |
