Toyota Camry Manual de reparaciones XV70 (2017-2023): UbicaciOn De Las Piezas

UBICACION DE LAS PIEZAS

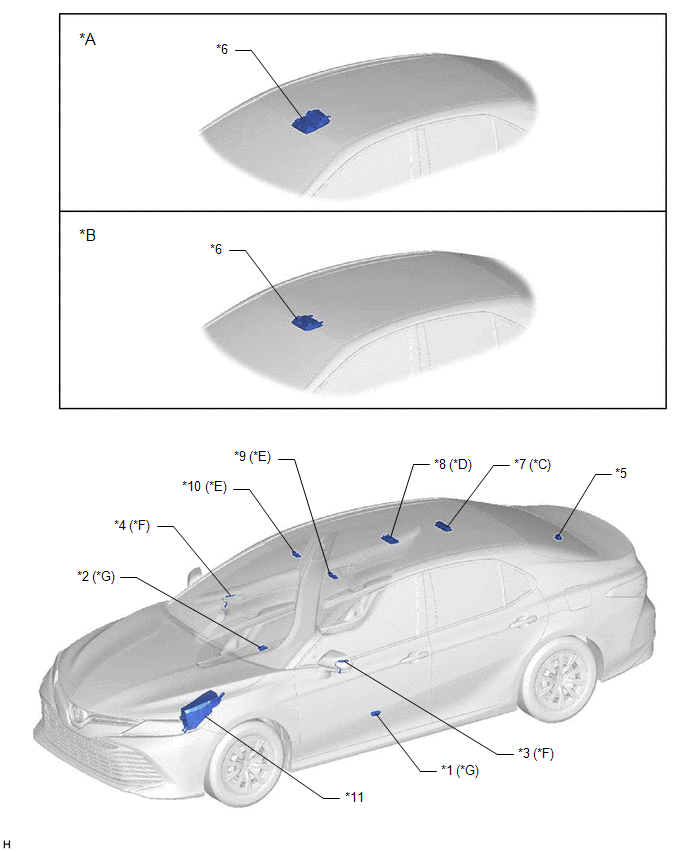

ILUSTRACION

*A

Para techo normal

*B

excepto techo normal

*C

Con luz interior (tipo LED)

*D

Con luz interior (tipo bombilla)

*E

Con luz de cortesia

*F

Con luz de la manilla interior

*G

Con luz de cortesia

-

-

*1

CONJUNTO DE LA LUZ DE CORTESIA IZQUIERDA

*2

CONJUNTO DE LA LUZ DE CORTESIA DERECHA

*3

LUZ DE LA MANILLA INTERIOR IZQUIERDA (CONJUNTO DE LA LUZ INTERIOR IZQUIERDA NO. 1)

*4

LUZ DE LA MANILLA INTERIOR DERECHA (CONJUNTO DE LA LUZ INTERIOR DERECHA NO. 1)

*5

CONJUNTO DE LA LUZ DEL COMPARTIMIENTO DE EQUIPAJES NO. 1

*6

LUZ DE LECTURA DE MAPAS (SUBCONJUNTO DE LA CAJA DE LA CONSOLA DEL TECHO)

*7

CONJUNTO DEL PROYECTOR DE LUZ

*8

CONJUNTO DE LA LUZ INTERIOR

*9

CONJUNTO DE LA LUZ DE CORTESIA IZQUIERDA

*10

CONJUNTO DE LA LUZ DE CORTESIA DERECHA

*11

CONJUNTO DEL BLOQUE DE EMPALMES Y BLOQUE DE RELES DEL COMPARTIMENTO DEL MOTOR

- FUSIBLE ALT

-

-

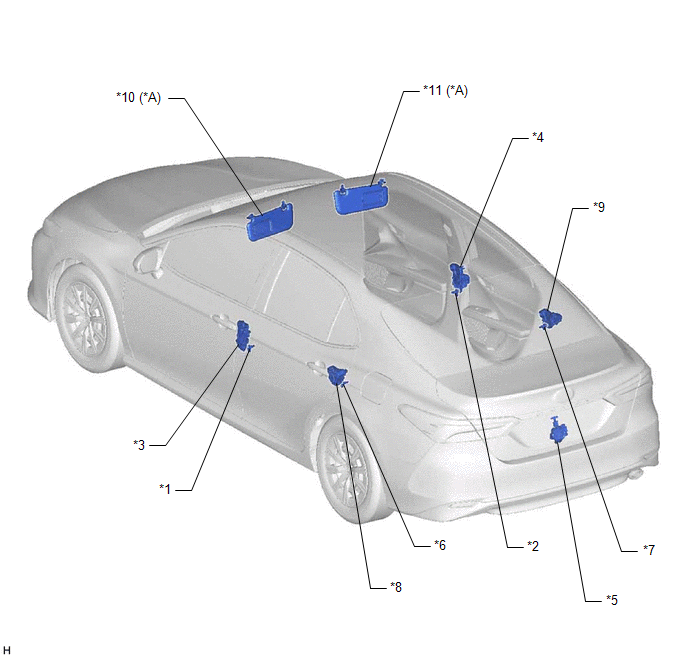

ILUSTRACION

*A

Con luz de cortesia

-

-

*1

CONJUNTO DEL INTERRUPTOR DE LA LUZ DE CORTESIA DE LA PUERTA DELANTERA IZQUIERDA

*2

CONJUNTO DEL INTERRUPTOR DE LA LUZ DE CORTESIA DE LA PUERTA DELANTERA DERECHA

*3

CONJUNTO DE LA CERRADURA DE LA PUERTA DELANTERA IZQUIERDA CON MOTOR

*4

CONJUNTO DE LA CERRADURA DE LA PUERTA DELANTERA DERECHA CON MOTOR

*5

CONJUNTO DEL INTERRUPTOR DE LA LUZ DE CORTESIA DE LA PUERTA DEL COMPARTIMIENTO DE EQUIPAJES (CONJUNTO DE LA CERRADURA DE LA PUERTA DEL COMPARTIMIENTO DE EQUIPAJES)

*6

CONJUNTO DEL INTERRUPTOR DE LA LUZ DE CORTESIA DE LA PUERTA TRASERA IZQUIERDA

*7

CONJUNTO DEL INTERRUPTOR DE LA LUZ DE CORTESIA DE LA PUERTA TRASERA DERECHA

*8

CONJUNTO DE LA CERRADURA DE LA PUERTA TRASERA IZQUIERDA CON MOTOR

*9

CONJUNTO DE LA CERRADURA DE LA PUERTA TRASERA DERECHA CON MOTOR

*10

CONJUNTO DEL PARASOL IZQUIERDO

*11

CONJUNTO DEL PARASOL DERECHO

-

-

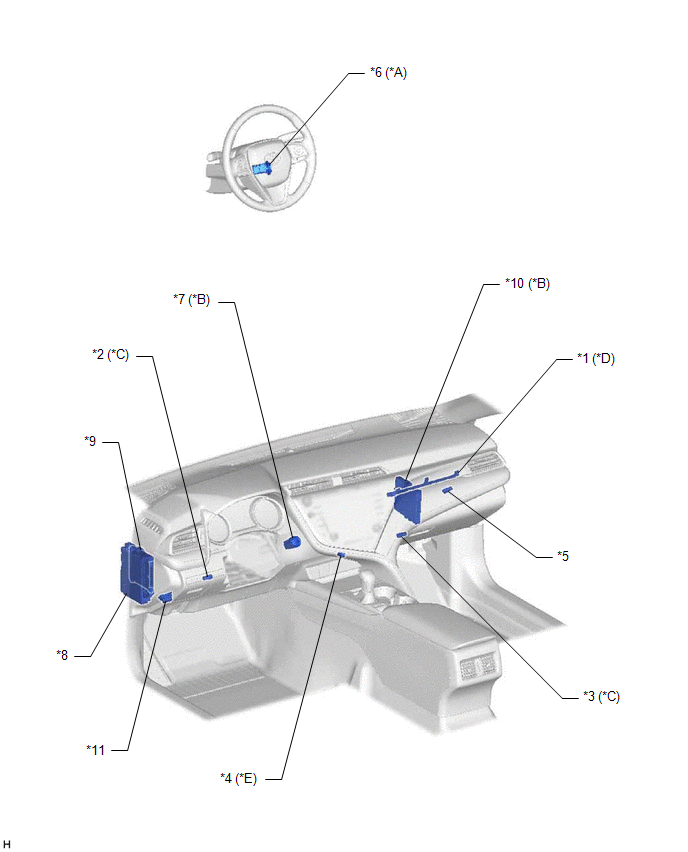

ILUSTRACION

*A

Sin sistema de llave inteligente

*B

Con sistema de llave inteligente

*C

Con luz del hueco para los pies

*D

Con luz interior del panel de instrumentos

*E

Con luz de la consola delantera

-

-

*1

LUZ AMBIENTAL DEL PANEL DE INSTRUMENTOS (CONJUNTO DE LA LUZ DEL PANEL DE INSTRUMENTOS)

*2

LUZ DEL HUECO PARA LOS PIES IZQUIERDO (CONJUNTO DE LA LUZ INTERIOR NO. 1)

*3

LUZ DEL HUECO PARA LOS PIES DERECHO (CONJUNTO DE LA LUZ INTERIOR NO. 1)

*4

LUZ DE LA CONSOLA DELANTERA (SUBCONJUNTO DE LA LUZ INTERIOR NO. 2)

*5

CONJUNTO DE LA LUZ DE LA GUANTERA

*6

LUZ DEL CILINDRO DE LA LLAVE DE ENCENDIDO (BOBINA DE LA LLAVE TRANSMISORA)

*7

INTERRUPTOR DEL MOTOR

*8

CONJUNTO DEL BLOQUE DE EMPALMES DEL PANEL DE INSTRUMENTOS

- FUSIBLE ECU-ACC

- FUSIBLE ECU-IG1 NO. 4

- FUSIBLE DOME

- FUSIBLE ECU-DCC NO. 2

- RELE ACC

- RELE IG1-NO. 1

- RELE DOME CUT

*9

ECU PRINCIPAL DE LA CARROCERIA (ECU DE LA RED MULTIPLEX DE LA CARROCERIA)

*10

ECU DE CERTIFICACION (CONJUNTO DE LA ECU DE LA LLAVE INTELIGENTE)

*11

DLC3

-

-
