Toyota Camry Manual de reparaciones XV70 (2017-2023): Componentes

COMPONENTES

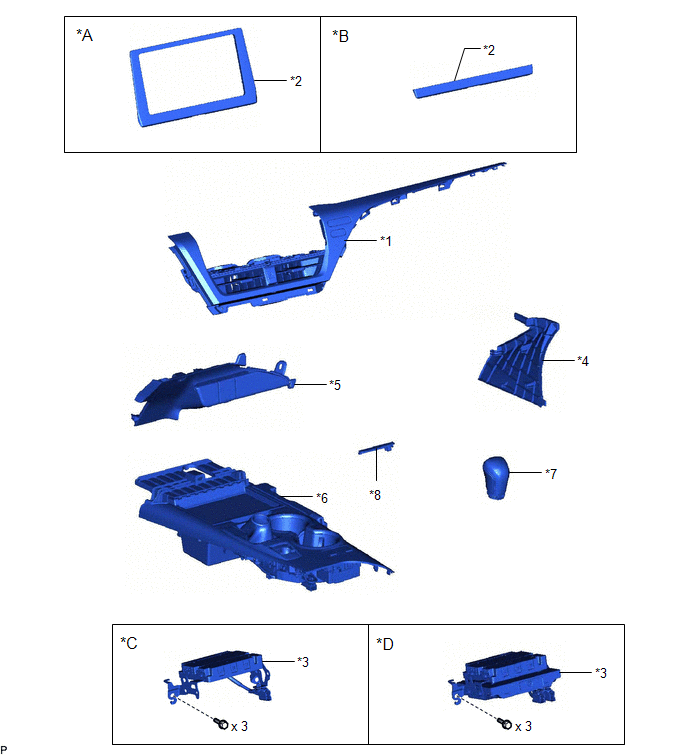

ILUSTRACION

*A

Para la Pantalla de 7 Pulgadas

*B

Para Pantalla de 9 Pulgadas

*C

Sin Sistema de Navegacion

*D

Con Sistema de Navegacion

*1

CONJUNTO DE LA MOLDURA DE ACABADO CENTRAL DEL GRUPO DE INSTRUMENTOS

*2

SUBCONJUNTO DE LA MOLDURA DE ACABADO CENTRAL DEL GRUPO DE INSTRUMENTOS

*3

DCM (TRANSCEPTOR DE TELEMATICA) CON SOPORTE

*4

EMBELLECEDOR DE LA PLACA DE ACABADO DEL PANEL DE INSTRUMENTOS

*5

MOLDURA DE ACABADO CENTRAL INFERIOR DEL PANEL DE INSTRUMENTOS

*6

SUBCONJUNTO DEL PANEL TRASERO DE LA CONSOLA SUPERIOR

*7

SUBCONJUNTO DE LA PERILLA DE LA PALANCA DE CAMBIOS

*8

CUBIERTA DEL BOTON DE DESBLOQUEO DEL CAMBIO

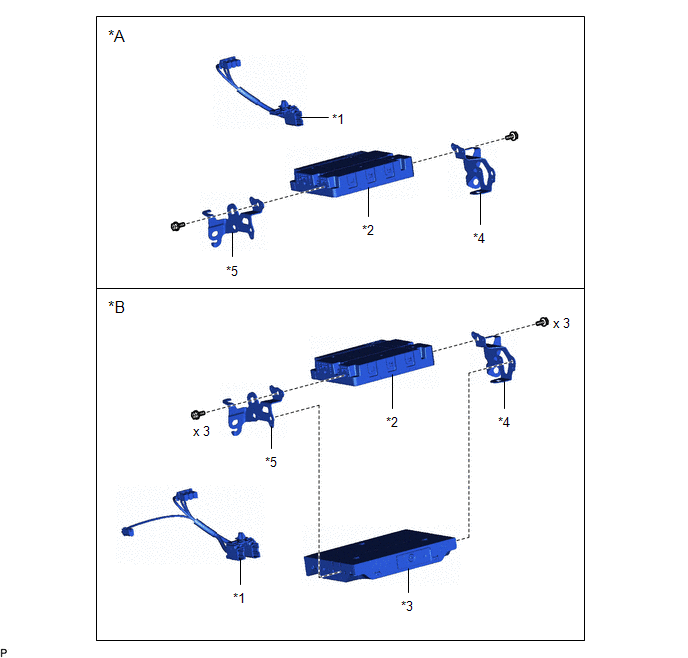

ILUSTRACION

*A

Sin Sistema de Navegacion

*B

Con Sistema de Navegacion

*1

SUBCONJUNTO DEL CABLE DE LA ANTENA

*2

DCM (TRANSCEPTOR DE LA UNIDAD TELEMATICA)

*3

ECU DE NAVEGACION

*4

SOPORTE DEL TELEFONO NO. 1

*5

SOPORTE DEL TELEFONO NO. 2

-

-

Dcm (transceptor De La Unidad TelemAtica)
...

ExtracciOn
EXTRACCION PRECAUCION/AVISO/OBSERVACION Los procedimientos necesarios (de ajuste, calibracion, inicializacion o registro) que se deben realizar despues de extraer e instalar las piezas o al sustituir ...

LEER SIGUIENTE:

InstalaciOn
INSTALACION PROCEDIMIENTO 1. INSTALE EL CONJUNTO DEL MEDIDOR DEL SENSOR DEL NIVEL DE COMBUSTIBLE N° 2 (a) Enganche la garra para instalar el conjunto del medidor del sensor del nivel de combustible No. 2 en el subconjunto del tubo principal y de retorno de combustible trasero. AVISO: Tenga cuid ...

Cortocircuito a masa o circuito abierto del control del solenoide de control de presión del embrague del convertidor de par (P275614)
DESCRIPCIÓN Consulte el DTC P275612. Haga clic aquí No. de DTC Detection Item Condición de detección de DTC Área afectada MIL Memoria Nota P275614 Cortocircuito a masa o circuito abierto del control del solenoide de control de presión del embrague del c ...

Componentes
COMPONENTES ILUSTRACION *1 CONJUNTO DEL SENSOR DEL NIVEL DE COMBUSTIBLE *2 CONJUNTO DEL TUBO DE ASPIRACION DEL COMBUSTIBLE CON BOMBA Y MEDIDOR ...
