COMPONENTES

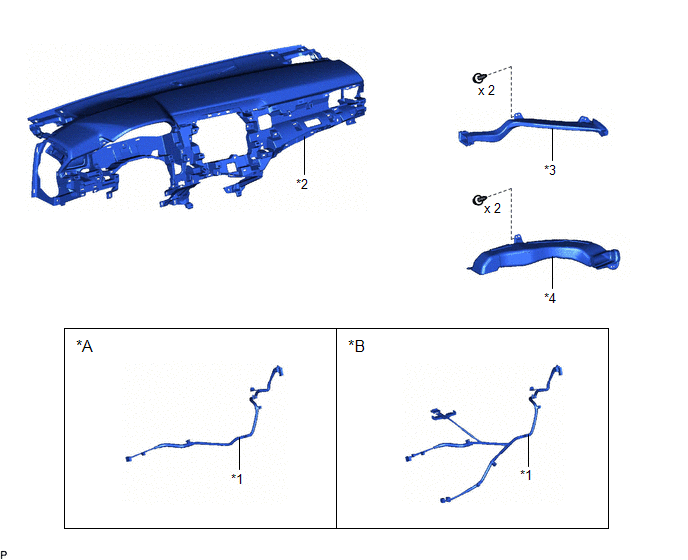

ILUSTRACION
*A | sin antena de navegacion |
*B | Con antena de navegacion |
*1 | SUBCONJUNTO DEL CABLE DE LA ANTENA |
*2 | SUBCONJUNTO DE LA ALMOHADILLA DE SEGURIDAD DEL PANEL DE INSTRUMENTOS |
*3 | CONDUCTO DE LA BOQUILLA DEL DESESCARCHADOR LATERAL NO. 2 |
*4 | SUBCONJUNTO DEL CONDUCTO DE LA CALEFACCION AL DIFUSOR NO. 3 |

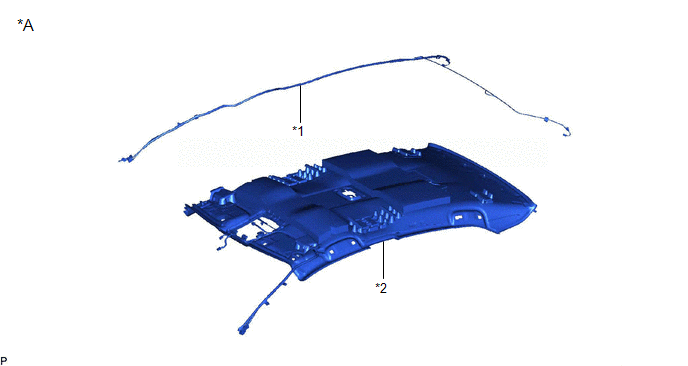

ILUSTRACION
*A | Para techo normal |
- | - |
*1 | SUBCONJUNTO DEL CABLE DE LA ANTENA NO. 2 |
*2 | CONJUNTO DEL FORRO DEL TECHO |
ILUSTRACION
*A | Para techo solar |
- | - |
*1 | SUBCONJUNTO DEL CABLE DE LA ANTENA NO. 2 |
*2 | CONJUNTO DEL FORRO DEL TECHO |

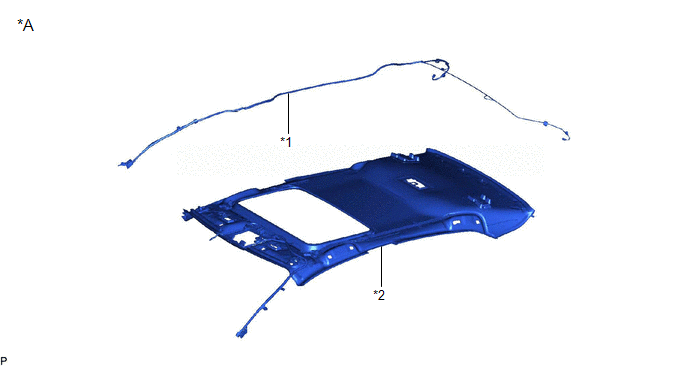

ILUSTRACION
*A | Para el techo solar panoramico |
- | - |
*1 | SUBCONJUNTO DEL CABLE DE LA ANTENA NO. 2 |
*2 | CONJUNTO DEL FORRO DEL TECHO |

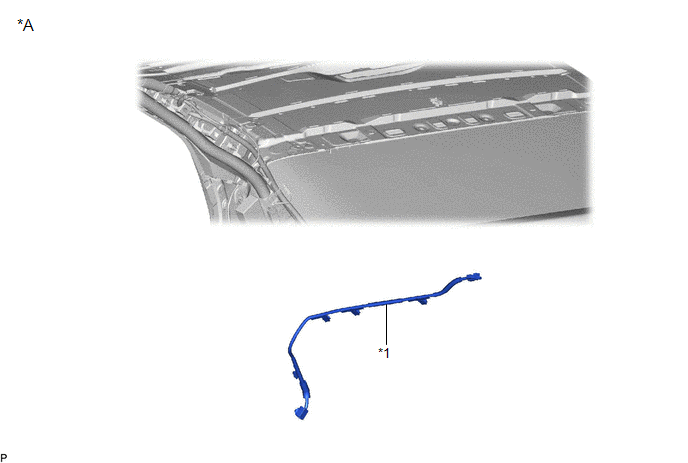

ILUSTRACION
*A | con interruptor manual (SOS) |
- | - |
*1 | SUBCONJUNTO DEL CABLE DE LA ANTENA NO. 5 |
- | - |
Tabla De DiagnOsticos De Problemas
TABLA DE DIAGNOSTICOS DE PROBLEMAS
OBSERVACION:
Consulte la siguiente tabla para determinar la causa de los sintomas
del problema. Si hay varias areas posiblemente afectadas, las causas
posibles del problema estan enumeradas en oden de probabilidad en la
columna "Suspected Area&q ...
InstalaciOn
INSTALACION PROCEDIMIENTO
1. INSTALE TEMPORALMENTE EL CONJUNTO DE LA UNIDAD DE AIRE ACONDICIONADO
(a) Con garra: (1) Enganche las 2 garras. (b) Instale
temporalmente el conjunto de la unidad de aire acondicionado en el conjunto
del refuerzo del panel de instrumentos con los 3 pernos. 2. INST ...
Componentes
COMPONENTES ILUSTRACIÓN
*1 CONJUNTO DEL EJE DELANTERO
*2 CONJUNTO DE LA JUNTA ESFÉRICA INFERIOR DELANTERA
*3 PASADOR HENDIDO
- -
Par de apriete para "Zonas principales que implican el rendimiento básico del vehículo, como moverse/girar/detener ...
